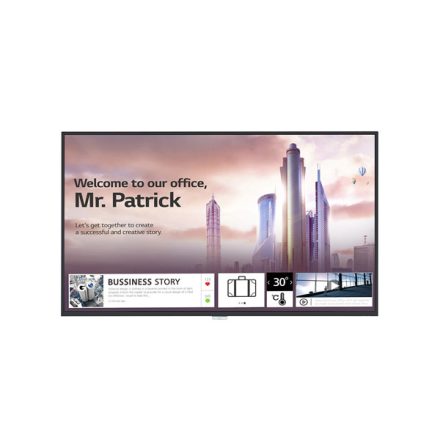

Non-Glare Ultra HD Series
Brightness(Typ.) : 500 cd/m?
Surface Treatment (Haze) : 28%
Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
Depth : 39.9 mm
Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
30? Tilting Installation
OVERVIEW
SUPERB PICTURE QUALITY
Clear View with Non-glare Coating
Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
SUPERB PICTURE QUALITY
ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.
SLEEK AND PRACTICAL DESIGN
Narrow Bezel & Slim Depth
This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
SLEEK AND PRACTICAL DESIGN
Detachable Logo and Built-in Speaker
This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
PRODUCT RELIABILITY
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
PRODUCT RELIABILITY
30° Tilting Installation
When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.
* Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30?C temperature, 50% humidity)
EASY INSTALLATION
Auto Screen Rotatio
This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.
EASY INSTALLATION
Fine Adjustment
This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.
webOS SMART SIGNAGE PLATFORM
High-Performance with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
webOS SMART SIGNAGE PLATFORM
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
MEETING ROOM SOLUTION COMPATIBILITY
Compatible with AV Control System
The UH5F-H series has been certified Crestron ConnectedŽ for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control
MEETING ROOM SOLUTION COMPATIBILITY
Compatible with Video Conference System
For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
* Using an HDMI cable connection
ENERGY STARŽ Certified
| |
|
|
| SPECS |
|
|
| |
|
|
PANEL
|
Screen Size |
Panel Technology |
|
55" |
IPS |
| |
|
|
| |
Native Resolution |
Brightness (Typ.) |
| |
3,840 x 2,160 (UHD) |
500 |
| |
|
|
| |
Contrast Ratio |
Dynamic CR |
| |
1,100:1 |
1,000,000 : 1 |
| |
|
*The luminosity ratio of Full Black / |
| |
|
Full White color on video input condition. |
| |
|
|
| |
Color gamut |
Viewing Angle (H x V) |
| |
BT709 95% |
178 x 178 |
| |
|
|
| |
Color Depth |
Response Time |
| |
1.07 Billion Colors (10 bit) |
8 ms (G to G) |
| |
|
|
| |
Surface Treatment (Haze) |
Operation Hours (Hours / Day) |
| |
Haze 28% |
24 / 7 |
| |
|
|
| |
Portrait / Landscape |
|
| |
Yes / Yes |
|
| |
|
|
|
|
|
| |
|
|
CONNECTIVITY
|
Input |
Output |
|
HDMI (2, HDCP 2.2/1.4), |
DP, |
| |
HDMI (1, HDCP 1.4), |
Audio |
| |
DP (1, HDCP 2.2/1.3), |
|
| |
DVI-D (HDCP 1.4), |
|
| |
Audio, |
|
| |
USB 2.0 Type A |
|
| |
|
|
| |
External Control |
|
| |
RS232C (4 Pin Phone Jack) In / Out, |
|
| |
RJ45(LAN) In, |
|
| |
IR In |
|
| |
|
|
|
|
|
| |
|
|
MECHANICAL SPECIFICATION
|
Bezel Color |
Bezel Width |
|
Black |
9.9mm (T/R/L), |
| |
|
14.4mm (B) |
| |
|
|
| |
Weight (Head) |
Monitor Dimension (W × H × D) |
| |
19.0 kg |
1,234.4mm x 720.9mm x 39.9mm |
| |
|
|
| |
Monitor Dimensions with Stand (W × H × D) |
Handle |
| |
1,234.4 × 770.7 × 290.0 mm |
No |
| |
|
|
| |
VESA Standard Mount Interface |
|
| |
300 x 300 mm |
|
| |
|
|
|
|
|
| |
|
|
SPECIAL FEATURE
|
Tilt (Facedown) |
IP Rating |
|
Yes (Max. 30?) |
IP5X |
| |
*In conditions within 30?C temperature, 50% humidity |
|
| |
|
|
|
|
|
| |
|
|
ENVIRONMENT CONDITIONS
|
Operation Temperature |
Operation Humidity |
|
0°C to 40°C |
10% to 80% |
| |
|
|
|
|
|
| |
|
|
POWER
|
Power Supply |
Power Type |
|
AC 100-240V~, 50/60Hz |
Built-In Power |
| |
|
|
|
|
|
| |
|
|
POWER CONSUMPTION
|
Typ. / Max. |
BTU (British Thermal Unit) |
|
105W / 145W |
358 BTU/Hr (Typ.), |
| |
|
495 BTU/Hr (Max.) |
| |
|
|
|
|
|
| |
|
|
SOUND
|
Speaker |
|
|
Yes |
|
| |
|
|
|
|
|
| |
|
|
CERTIFICATION
|
Safety |
EMC |
| |
CB, NRTL |
FCC Class "A" / CE / KC |
| |
|
|
| |
ErP |
|
| |
Yes |
|
| |
|
|
|
|
|
| |
|
|
OPS COMPATIBILITY
|
OPS Type Compatible |
OPS Power Built In |
|
Yes |
No |
| |
|
|
|
|
|
| |
|
|
SOFTWARE COMPATIBILITY
|
SuperSign CMS |
SuperSign Control / Control+ |
|
Yes |
Yes |
| |
|
|
| |
SuperSign WB |
SuperSign Media Editor |
| |
Yes |
Yes |
| |
|
|
| |
Signage365Care |
|
| |
Yes (The availability can differ by region.) |
|
| |
|
|
|
|
|
| |
|
|
ACCESSORY
|
Basic |
Optional |
|
Remote Controller, |
Stand (ST-653T), |
| |
Power Cord, |
Wall Bracket (LSW350B), |
| |
QSG, |
VESA Adapter (AM-B330S), |
| |
HDMI Cable, |
OPS Kit (KT-OPSF) |
| |
Regulation Book, |
|
| |
Phone to RS232C Gender |
|
| |
|
|
|
|
|
| |
|
|
GENERAL
|
Region |
|
|
Global |
|
