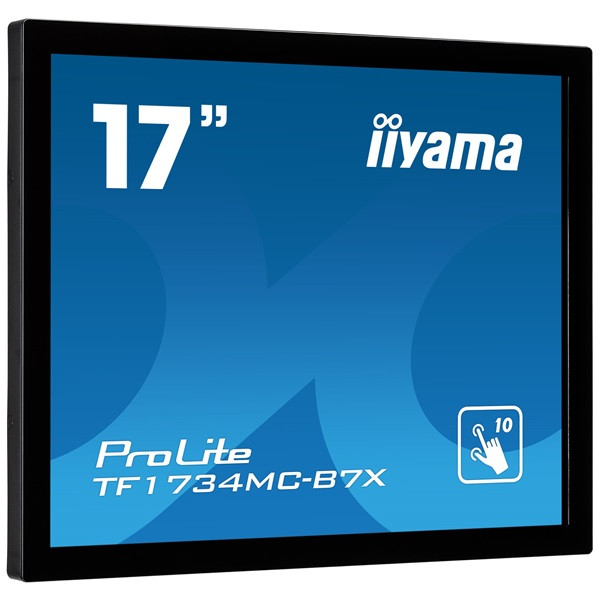

Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
236 700 Ft

Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC

Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC
Asztali monitor, Iiyama touch monitor, 17, 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC

Nem csak webshop, 20 éves tapasztalat.

Garancia
24 hónap
Natív felbontás
SXGA (1280x1024)
Képátló
17" / 43.1 cm
Kontrasztarány
1 000 : 1
Kijelző fényerő
315 cd/m²
Külső készleten
Nincs raktáron
További adatok
Rendelhető
236 700 Ft
Műszaki adatok
Gyártó
Iiyama
Panel típus
TN
Képarány
5:4
Képfrissítési frekvencia
60 Hz
Válaszidő
5 ms
Láthatósági szög
178° / 178°
Gyártói Cikkszám
TF1734MC-B7X
Tömeg
5 kg/db
Kiterjesztett információk

DISPLAY CHARACTERISTICS



Design Open Frame
Diagonal 17", 43cm
Panel TN LED
Native resolution 1280 x 1024 (1.3 megapixel)
Aspect ratio 5:4
Panel brightness 350 cd/m²
Brightness 315 cd/m² with touch
Light transmittance 90%
Static contrast 1000:1 with touch
Response time (BTB) 5ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln 8bit
Horizontal Sync 31.4 - 80kHz
Viewable area W x H 338 x 270.5mm, 13.3 x 10.6"
Pixel pitch 0.264mm
Bezel colour and finish black, matte


TOUCH



Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All Iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

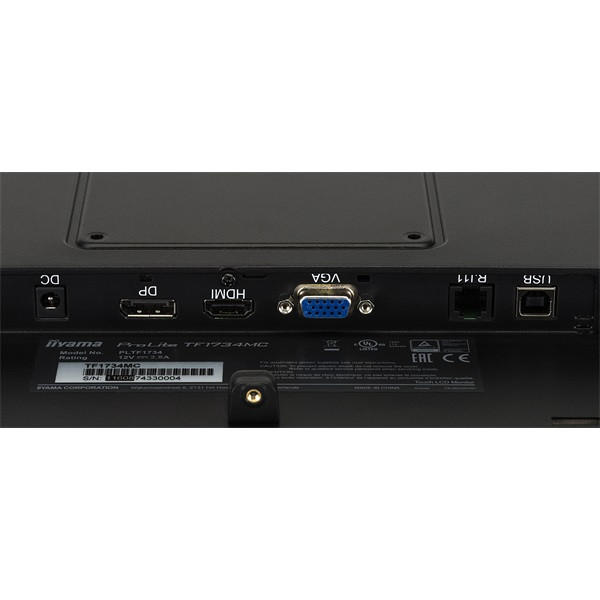

INTERFACES / CONNECTORS / CONTROLS



Analog signal input VGA x1
Digital signal input HDMI x1

DisplayPort x1
HDCP yes


FEATURES



Extra anti-fingerprint coating, touch through-glass
Glass thickness 7mm
Water and dust protection IP65 (front)
OSD key lock yes


GENERAL



OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B


MECHANICAL



Orientation landscape, portrait, face-up

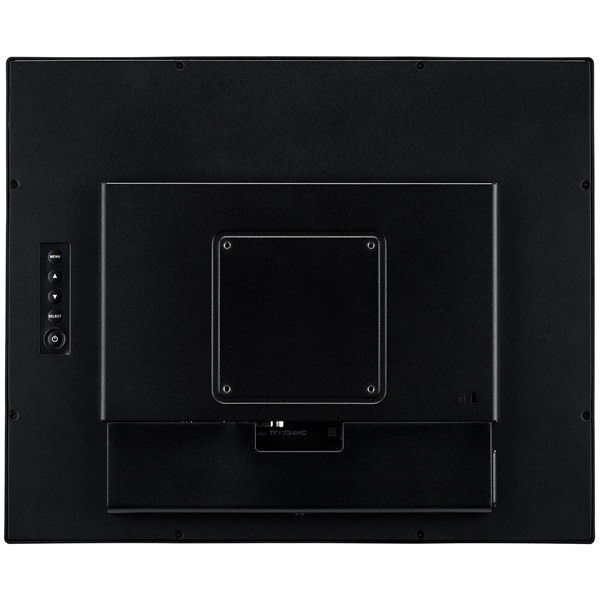

VESA mounting 100 x 100mm


ACCESSORIES INCLUDED

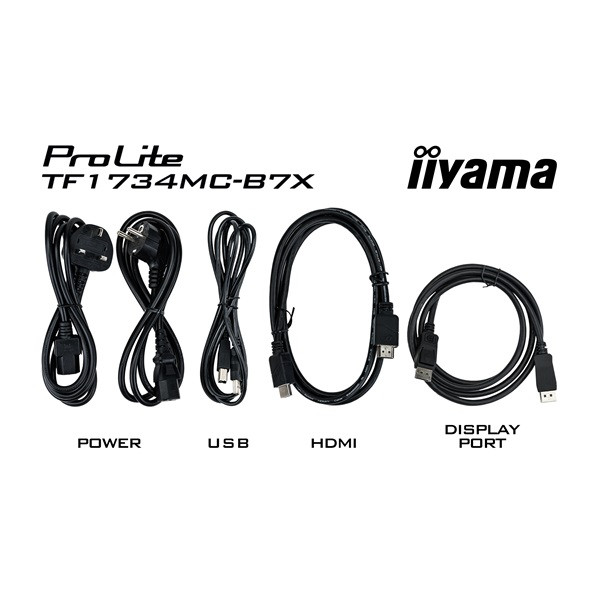

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes


POWER MANAGEMENT



Power supply unit external
Power supply DC 12 V
Power usage 13W typical, 1.5W stand by, 0.3W off mode


SUSTAINABILITY



Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead


DIMENSIONS / WEIGHT



Product dimensions W x H x D 369 x 307 x 47.5mm
Box dimensions W x H x D 455 x 387 x 145mm
Weight (without box) 3.6kg
Weight (with box) 4.9kg
EAN code 4948570118397


COMPATIBLE ACCESSORIES

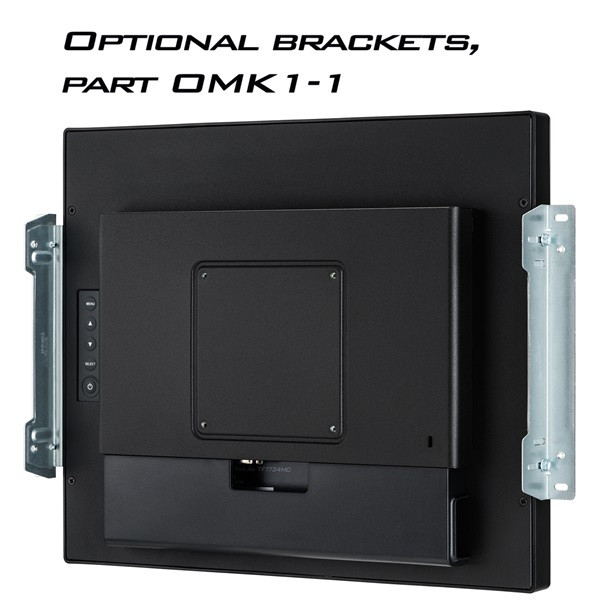

Mounts/stands/brackets OMK1-1


RELATED INFORMATION



Product series ProLite TF1634MC-B7X, ProLite TF1534MC-B7X, ProLite TF2234MC-B7X, ProLite TF1934MC-B7X
Related products RC TOUCHV01, OMK1-1
