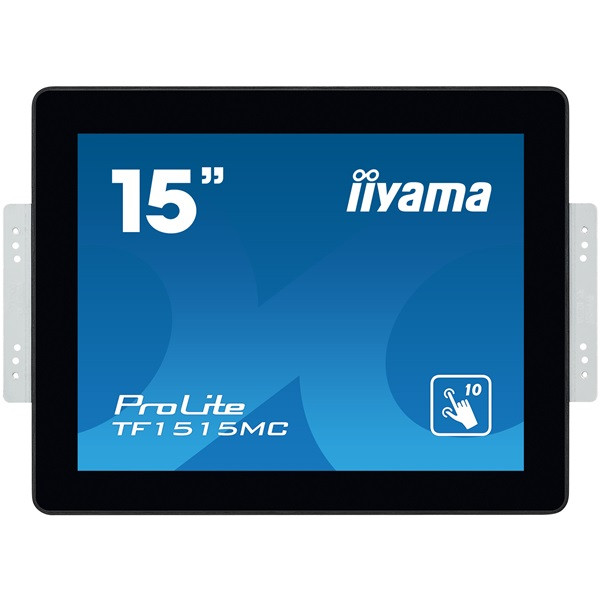

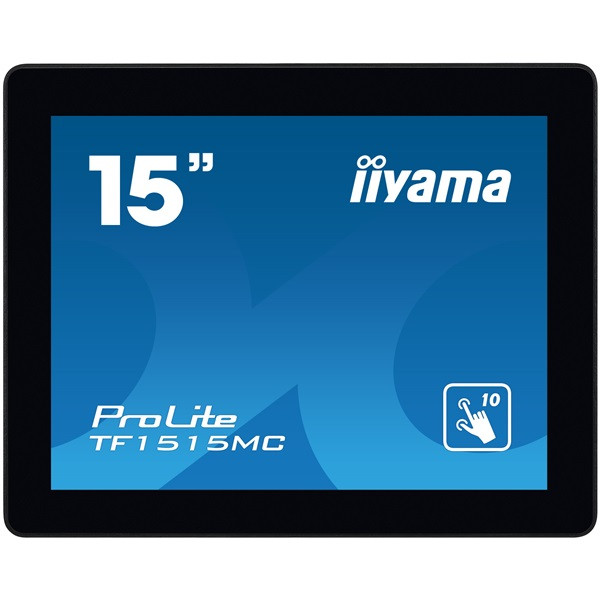

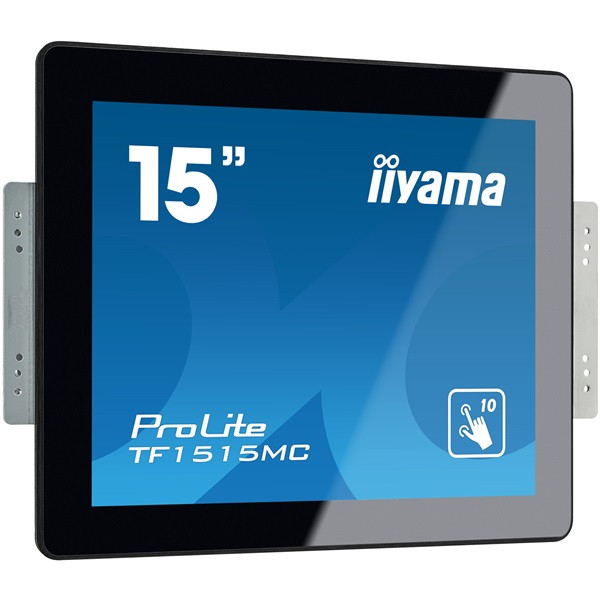

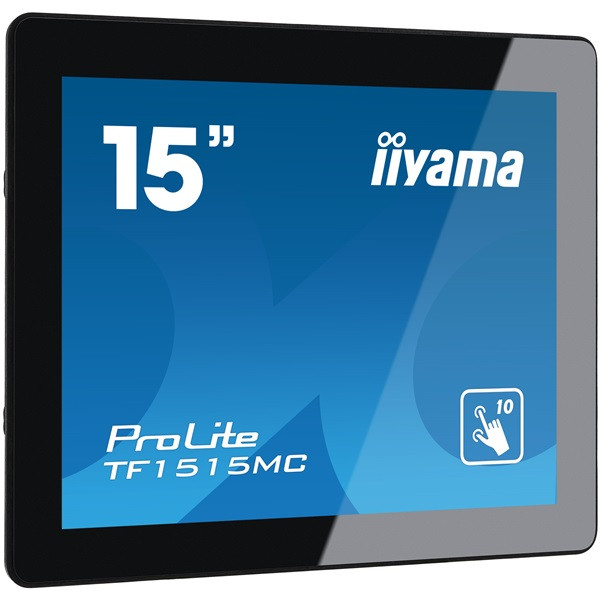

Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
197 400 Ft

Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC

Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Asztali monitor, Iiyama touch monitor, 15, 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC

Nem csak webshop, 20 éves tapasztalat.

Garancia
24 hónap
Natív felbontás
XGA (1024x768)
Képátló
15" / 38 cm
Kontrasztarány
800 : 1
Kijelző fényerő
315 cd/m²
Külső készleten
Nincs raktáron
További adatok
Rendelhető
197 400 Ft
Műszaki adatok
Gyártó
Iiyama
Panel típus
TN
Képarány
4:3
Képfrissítési frekvencia
60 Hz
Válaszidő
8 ms
Láthatósági szög
178° / 178°
Gyártói Cikkszám
TF1515MC-B2
Tömeg
4,5 kg/db
Kiterjesztett információk

DISPLAY CHARACTERISTICS

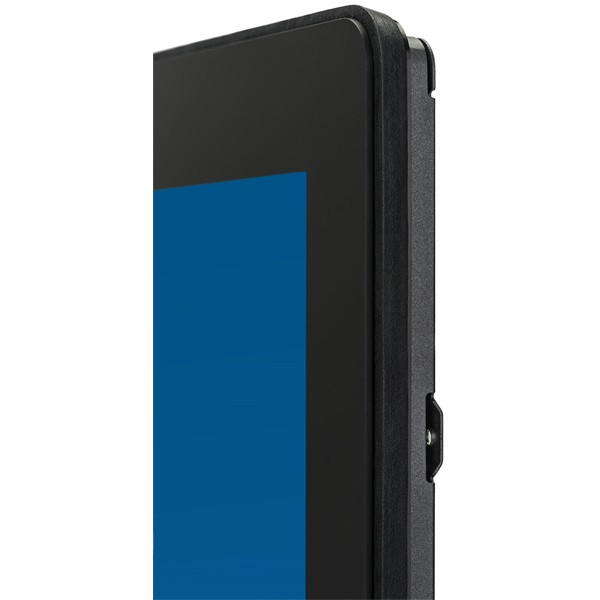

Design Open Frame
Diagonal 15", 38cm
Panel TN LED
Native resolution 1024 x 768 (0.8 megapixel)
Aspect ratio 4:3
Panel brightness 350 cd/m²
Brightness 315 cd/m² with touch
Light transmittance 90%
Static contrast 800:1 with touch
Response time (BTB) 8ms
Viewing zone horizontal/vertical: 160°/150°, right/left: 80°/80°, up/down: 75°/75°
Colour support 16.2mln (6bit + Hi-FRC)
Horizontal Sync 31.4 - 60kHz
Viewable area W x H 304.1 x 228.1mm, 12 x 9"
Pixel pitch 0.297mm
Bezel colour and finish black


TOUCH



Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All Iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm

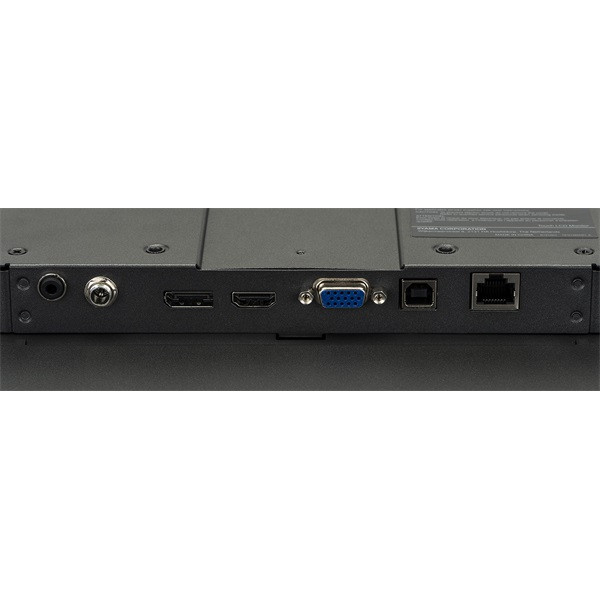

INTERFACES / CONNECTORS / CONTROLS



Analog signal input VGA x1
Digital signal input HDMI x1

DisplayPort x1
Audio output Mini jack x1
HDCP yes


FEATURES



Extra anti-fingerprint coating, touch through-glass, foam seal
Glass hardness 7H
60950 Ball drop test yes
Water and dust protection IP65 (front)
OSD key lock yes


GENERAL



OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons menu,scroll up/ brightness, scroll down/ contrast, select, power
User controls picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B


MECHANICAL



Orientation landscape, portrait, face-up
VESA mounting 100 x 100mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C


ACCESSORIES INCLUDED

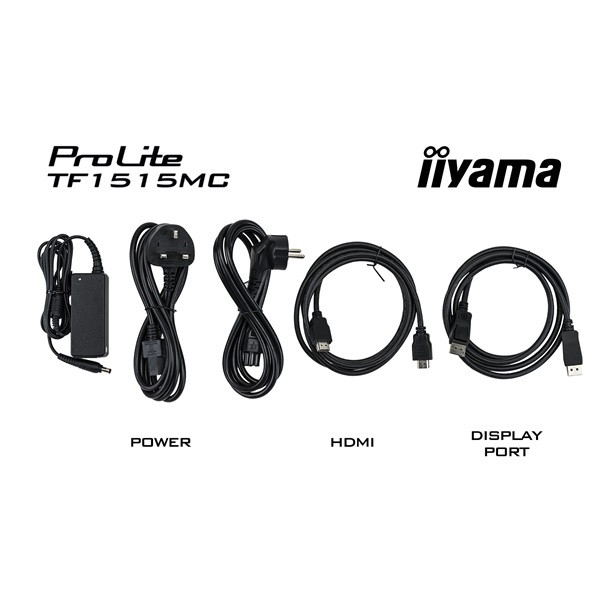

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide

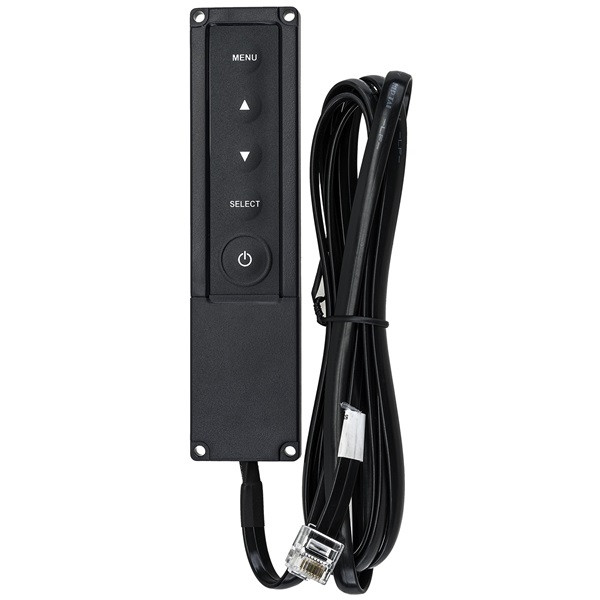

Other AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Remote control external control pad


POWER MANAGEMENT



Power supply unit external
Power supply DC 12 V
Power usage 16W typical, 1.2W stand by


SUSTAINABILITY



Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead


DIMENSIONS / WEIGHT



Product dimensions W x H x D 364 x 291 x 41.5mm
Box dimensions W x H x D 460 x 470 x 175mm
Pallet volume 44pcs
Pallet dimensions W x H x D 860 x 970 x 120mm
Weight (without box) 2.9kg
Weight (with box) 4.6kg
EAN code 4948570116751


RELATED INFORMATION



Related products OMK2-1
