Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
221 400 Ft

Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC

Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Asztali monitor, Iiyama touch monitor, 12, 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC

Nem csak webshop, 20 éves tapasztalat.

Garancia
24 hónap
Natív felbontás
XGA (1024x768)
Képátló
12" / 30.5 cm
Kontrasztarány
1 000 : 1
Kijelző fényerő
450 cd/m²
Külső készleten
Nincs raktáron
További adatok
Rendelhető
221 400 Ft
Műszaki adatok
Gyártó
Iiyama
Panel típus
IPS
Képarány
4:3
Képfrissítési frekvencia
60 Hz
Válaszidő
28 ms
Láthatósági szög
178° / 178°
Gyártói Cikkszám
TF1215MC-B1
Tömeg
4 kg/db
Kiterjesztett információk

DISPLAY CHARACTERISTICS



Design Open Frame
Diagonal 12.1", 31cm
Panel IPS Technology
Native resolution 1024 x 768 (0.8 megapixel)
Aspect ratio 4:3
Panel brightness 540 cd/m²
Brightness 450 cd/m² with touch
Light transmittance 85%
Static contrast 1000:1
Response time (BTB) 25ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.2mln (6bit + Hi-FRC)
Horizontal Sync 31.4 - 60kHz
Viewable area W x H 245.8 x 184.3mm, 9.7 x 7.2"
Pixel pitch 0.24mm
Bezel colour and finish black


TOUCH



Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method finger, glove (latex), capacitive stylus
Touch interface USB
Supported operating systems All Iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

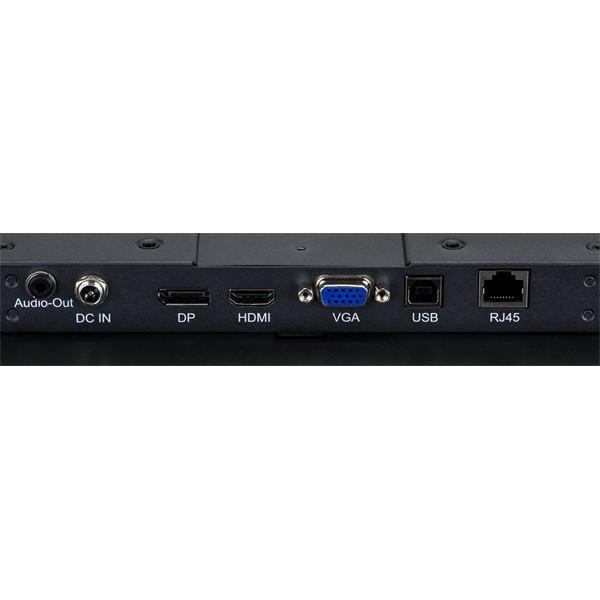

INTERFACES / CONNECTORS / CONTROLS



Analog signal input VGA x1
Digital signal input HDMI x1

DisplayPort x1
Audio output Mini jack x1
HDCP yes


FEATURES



Extra anti-fingerprint coating, touch through-glass
Glass thickness 3.15mm
Glass hardness 7H
60950 Ball drop test yes
Water and dust protection IP65 (front)
OSD key lock yes


GENERAL



OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
User controls picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B


MECHANICAL



Orientation landscape, portrait, face-up
VESA mounting 100 x 100mm
Operation temperature range (-°/+°) -20°C - 60°C
Storage temperature range - 20°C - 60°C


ACCESSORIES INCLUDED



Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter, external control pad
Remote control external control pad


POWER MANAGEMENT



Power supply unit external
Power supply DC 12 V
Power usage 10W typical, 0.55W stand by, 0.5W off mode


SUSTAINABILITY



Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369) F


DIMENSIONS / WEIGHT



Product dimensions W x H x D 308.5 x 248 x 41.5mm
Box dimensions W x H x D 435 x 355 x 165mm
Weight (without box) 2.1kg
Weight (with box) 3.9kg
EAN code 4948570118007


COMPATIBLE ACCESSORIES



Mounts/stands/brackets OMK3-1


RELATED INFORMATION



Related products OMK3-1
